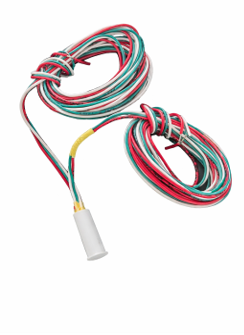

Portal Status Switch

Magnetic Door Status Switch for Cleanroom Access and Interlock

Systems The CleanSpace Portal Electronics Status Switch is a door position monitoring device designed to provide real-time feedback on door status within cleanroom environments. It uses magnetic contact sensing to indicate whether a door is open or closed, supporting interlock control and system monitoring. Designed for integration with CleanSpace door systems, the Status Switch ensures reliable position detection while maintaining cleanroom compatibility and long-term durability.

Engineered for Door Position Monitoring

The Status Switch is designed to provide accurate and consistent feedback for door position within controlled environments. Key features include:

• Magnetic contact sensing for door open/closed status
• Supports interlock and access control systems
• Provides real-time door position feedback
• Designed for cleanroom environments
• Reliable, low-maintenance operation

Construction and Materials

• The device is constructed for durability and cleanroom compatibility.
• Sealed magnetic contact assembly
• Recessed or surface-mounted configurations
• Cleanroom-compatible materials and finishes
• Designed for long-term use in controlled environments This construction ensures reliable operation and minimal maintenance.

Performance and Operation

• The Status Switch provides consistent and accurate door position monitoring.
• Instant response to door position changes
• Normally open or normally closed configurations
• Designed for high-cycle operation
• Reliable performance under repeated use The system ensures accurate feedback for control and monitoring systems.

System Integration

• The Status Switch is designed to integrate into CleanSpace door and control systems.
• Interfaces with interlock control panels
• Compatible with access control systems
• Supports door monitoring and automation
• Suitable for single door and airlock configurations This allows coordinated operation within the cleanroom control system.

Jointing and Sealing

• The device is installed to maintain cleanroom surface integrity.
• Flush or recessed mounting options
• Sealed interface with door frame or wall
• Cleanroom-compatible installation methods This ensures proper sealing and cleanability at installation points.

Compliance and Performance

• The Status Switch is designed for use in regulated environments.
• Suitable for cGMP cleanroom applications
• Designed for cleanroom-compatible installation
• Low voltage system integration
• Durable, sealed construction

Applications

The Status Switch is ideal for:

• Cleanroom door position monitoring
• Interlocked airlock systems
• Pharmaceutical cleanrooms
• Controlled access environments
• Automation and control systems
