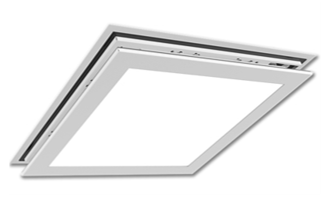

Apollo™ Walkable Cleanroom Lighting
The CleanSpace Apollo™ system is a load-rated LED lighting solution designed for walkable cleanroom ceilings. These fixtures provide high-intensity illumination while maintaining the structural and environmental integrity of the ceiling envelope. Engineered for full serviceability from above, the Apollo™ series allows maintenance teams to access electrical components without entering the sterile environment or disrupting cleanroom operations.
Each fixture is built to withstand the rigors of pharmaceutical and high-tech facilities, featuring a robust housing that supports significant static loads and remains airtight under pressure.
High-Performance Lighting & Structural Integrity
The Apollo™ series combines advanced LED technology with a heavy-duty mechanical design:
Structural Load Capacity
Rated for an 800 lb static load, ensuring the fixture remains undamaged and safe during overhead maintenance activities.
Superior Environmental Sealing
Features multiple neoprene gasketed interfaces at the lens, top cover, and door frame to prevent dust, liquid, and vapor penetration.
Hygienic IP65 Protection
Certified dust-tight and water-resistant to withstand high-frequency cleaning and aggressive decontamination protocols.
Advanced LED Efficiency
High-efficiency modules provide consistent 4000K illumination with an L70 lifetime exceeding 60,000 hours.
Versatile Compliance
ETL-certified for wet locations and compatible with ISO Class 3 through Class 8 cleanroom standards.
Specialized Industry Applications
Apollo™ lighting is the preferred choice for facilities that prioritize maintenance efficiency and cleanliness:
Pharmaceutical & cGMP Manufacturing
Provide reliable, sealed illumination for sterile fill-finish and processing zones.
Biotechnology Labs
Maintain environmental separation during routine electrical service or bulb replacement.
Large-Scale Aerospace Facilities
Support walkable ceiling decks where expansive lighting layouts and structural safety are required.
Microelectronics & Semiconductor
Low-particle, sealed fixtures meet strict outgassing and air purity requirements.
Frequently Asked Questions
Yes. The Apollo™ fixture enables "top-side" serviceability. Maintenance personnel can access the housing and electrical components from the interstitial space above the ceiling without compromising the sterile environment below.
Absolutely. The Apollo™ system is specifically engineered to be installed within and supported by 2-inch (50mm) CleanSpace ceiling systems, ensuring a flush and integrated finish.
The system is ETL certified for wet locations and carries an IP65 rating for water and dust resistance. It is also NSF2-rated for non-food and splash zones, with optional certifications available for Class I, Div 2 hazardous locations.
The housing is constructed from precision-welded 16-gauge cold-rolled steel and reinforced with structural brackets. It can support up to 800 lbs of static load, making it a safe and reliable component of a walkable ceiling deck.
