Portal Operator

Single and Double Automatic Operators with Integrated Shroud for Cleanroom Door

Assemblies The CleanSpace Portal Auto Operator system is an automated door control solution designed to provide hands-free operation for cleanroom doors. It includes configurations for single and double door assemblies along with integrated shroud enclosures to maintain a clean, protected installation within controlled environments. Engineered for integration with CleanSpace door systems, the Portal Auto Operator delivers smooth, reliable operation while reducing touchpoints and maintaining cleanroom surface integrity.

Engineered for Automated Cleanroom Access

The Portal Auto Operator system is designed to improve workflow efficiency and reduce contamination risk through touchless door operation. Key features include:

• Automated operation for single and double door configurations
• Reduces physical contact with door surfaces
• Adjustable opening and closing speeds
• Compatible with touchless activation devices
• Designed for integration with cleanroom interlock systems

Construction and Materials

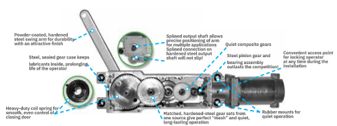

• The system consists of a motorized operator assembly and protective shroud designed for cleanroom environments.
• Electro-mechanical operator construction
• Heavy-duty motor and gearbox system
• Stainless steel or cleanroom-compatible shroud enclosure
• Sealed housing to protect internal components This construction provides durability, protection, and long-term performance.

Performance and Operation

• The Portal Auto Operator system is designed to deliver smooth, consistent door operation across multiple configurations.
• Supports door weights up to typical cleanroom door requirements
• Adjustable opening, closing, and hold-open timing
• Obstacle detection for safe operation
• Designed for high-cycle use in controlled environments The system ensures reliable and repeatable automated door performance.

System Integration

• The Portal Auto Operator system is designed to integrate with CleanSpace door and control systems.
• Compatible with Portal swing door assemblies
• Supports single and double door configurations
• Interfaces with hand wave, push button, and access control devices
• Integrates with interlock and building automation systems This enables coordinated operation within the cleanroom environment.

Jointing and Sealing

• The system is installed to maintain cleanroom surface integrity and protect mechanical components.

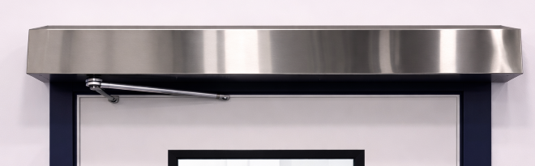

• Shroud enclosure conceals operator and arm assemblies
• Cleanroom-compatible mounting and sealing methods
• Sealed interface at installation points This ensures proper cleanability and protection of moving components.

Compliance and Performance

• The Portal Auto Operator system is designed for use in regulated environments.
• UL and ULC listed
• ANSI A156.10 compliant
• Suitable for cGMP cleanroom applications
• Cleanroom-compatible construction

Applications

The Portal Auto Operator system is ideal for:

• Automated cleanroom door systems
• Pharmaceutical cleanrooms
• USP 797 and USP 800 environments
• Interlocked airlock systems
• Hands-free access applications
