Apex Clad

Aluminum Honeycomb Cleanroom Wall Panel for GMP and Controlled

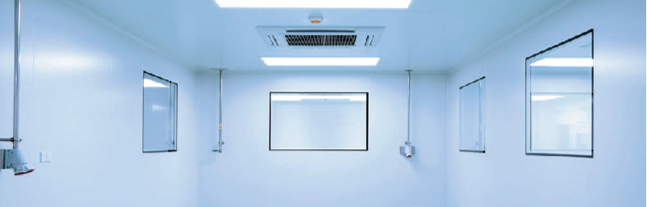

Environments The CleanSpace Apex Wall system is a 2” aluminum honeycomb modular cleanroom wall panel designed as the standard structural wall system within the CleanSpace platform. It provides a fully flush, monolithic wall surface with integrated raceway capability and high strength-to-weight performance for pharmaceutical and controlled environments.  Designed as a progressive build system, Apex Wall panels enable rapid installation, tight joint lines, and a consistent, high-performance cleanroom envelope.

Engineered for Modular Cleanroom Construction

The Apex Wall system is designed to deliver structural performance, integrated utilities, and efficient installation within modular cleanroom environments. Key features include:

• Progressive modular wall panel system for fast installation
• Fully flush, monolithic wall surface
• Integrated UL-rated raceway within panel frame
• Tight joint tolerances for cleanroom performance
• High strength-to-weight panel construction

Construction and Materials

• The system consists of aluminum honeycomb composite panels with an integrated structural frame.
• 2” (50mm) panel thickness
• 3/4” aluminum honeycomb core
• 0.02” (.55mm) steel substrate with white uPVC finish (room-side)
• 0.02” (.7mm) galvanized steel backing (unseen)
• 2” x 3” UL-listed aluminum extrusion frame
• Bonded using 2-part solvent-free adhesive
• Rigid PVC spline connection system This construction provides structural integrity, durability, and long-term performance in cleanroom environments.

Performance and Operation

• The Apex Wall system is designed to provide a durable, non-shedding, and cleanable wall surface while maintaining structural performance.
• Approximately 2.6 lbs/sqft panel weight
• High strength-to-weight ratio
• Non-porous, non-shedding surface
• Resistant to cleaning chemicals and disinfectants
• Designed for long-term cleanroom operation The system maintains performance under routine cleaning and operational conditions.

System Integration

• The Apex Wall system is designed for integration into complete cleanroom assemblies.
• Compatible with CleanSpace ceiling, door, and window systems
• Standard panel width: 4’ (1200mm finished)
• Standard heights: 9’ and 10’ with maximum height up to 13’
• Panels can be stacked vertically with staggered joints
• Integrated adjustable aluminum floor track system The system aligns with floor and ceiling assemblies to maintain a continuous cleanroom envelope.

Jointing and Sealing

• Panels are joined using cleanroom-compatible sealing methods to create a continuous surface.
• Rigid PVC spline connections
• Standard butt joint configuration
• Cold weld joint sealing
• Approved silicone sealants (clear or white) This ensures proper sealing and long-term cleanability.

Compliance and Performance

• The Apex Wall system is designed for use in regulated cleanroom environments.
• UL-listed panel system with integrated raceway
• Suitable for cGMP cleanroom applications
• Class O spread of flame surface performance
• Chemical-resistant finish
• Designed for hygienic environments

Applications

The Apex Wall system is ideal for:

• Pharmaceutical cleanrooms
• cGMP manufacturing environments
• ISO-classified cleanrooms
• Biotechnology facilities
• Controlled production environments
